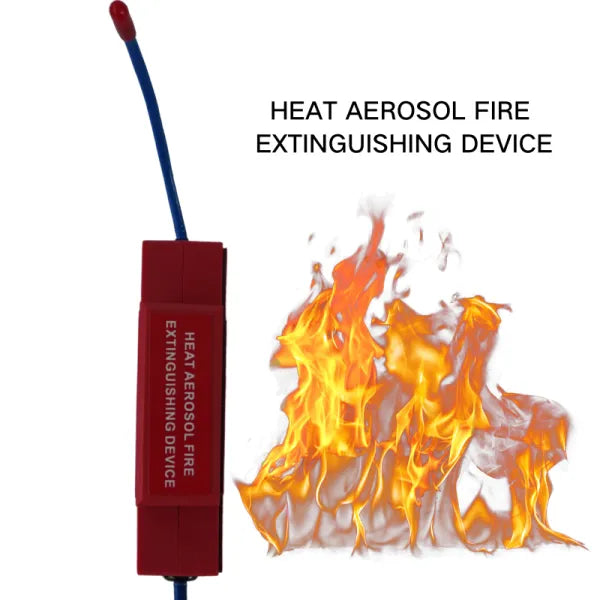

Heat Aerosol Fire Extinguishing Device for DIN Rail Electrical Panels

Automatic Fire Suppression for Your Electrical Systems

The Heat Aerosol Fire Extinguishing Device is a modern fire suppression system developed to combat fires quickly and efficiently in small, confined spaces such as electrical boxes, distribution boards, and server rooms. Unlike traditional fire extinguishers that rely on pressurized gas or foam, this device uses a solid chemical mixture that undergoes an oxidation-reduction reaction when activated.

How It Works

When activated by heat, the device releases a large amount of fire-extinguishing aerosol through a chemical reaction. This aerosol works both physically and chemically to suppress flames and prevent the spread of fire. The metal salt particles generated absorb heat and inhibit combustion. The resulting aerosol remains suspended in the air for an extended period, ensuring that fires are extinguished even in hard-to-reach corners of your electrical enclosures.

Key Features & Benefits

Rapid Response The device activates in under 15 seconds at 170°C and discharges within 6 seconds, ensuring fast action in the event of a fire.

Power-Independent Operation This device is fully thermal-activated, meaning it does not require electricity to function. This makes it ideal for electrical enclosures where power cuts or electrical issues could otherwise prevent operation of traditional fire suppression systems.

Environmentally Responsible It is non-toxic, non-corrosive, and does not contribute to ozone layer depletion, making it an environmentally responsible choice for fire protection in any setting.

Long Service Life With a 10-year shelf life, this fire extinguisher requires minimal maintenance, offering long-term peace of mind for users. Simply install and forget—it works silently in the background.

Compact & Space-Saving Design At only 18mm wide, it is compact enough to fit into tight spaces like electrical cabinets, control panels, and server rooms, where space is often limited. The small footprint means you don't sacrifice valuable enclosure space.

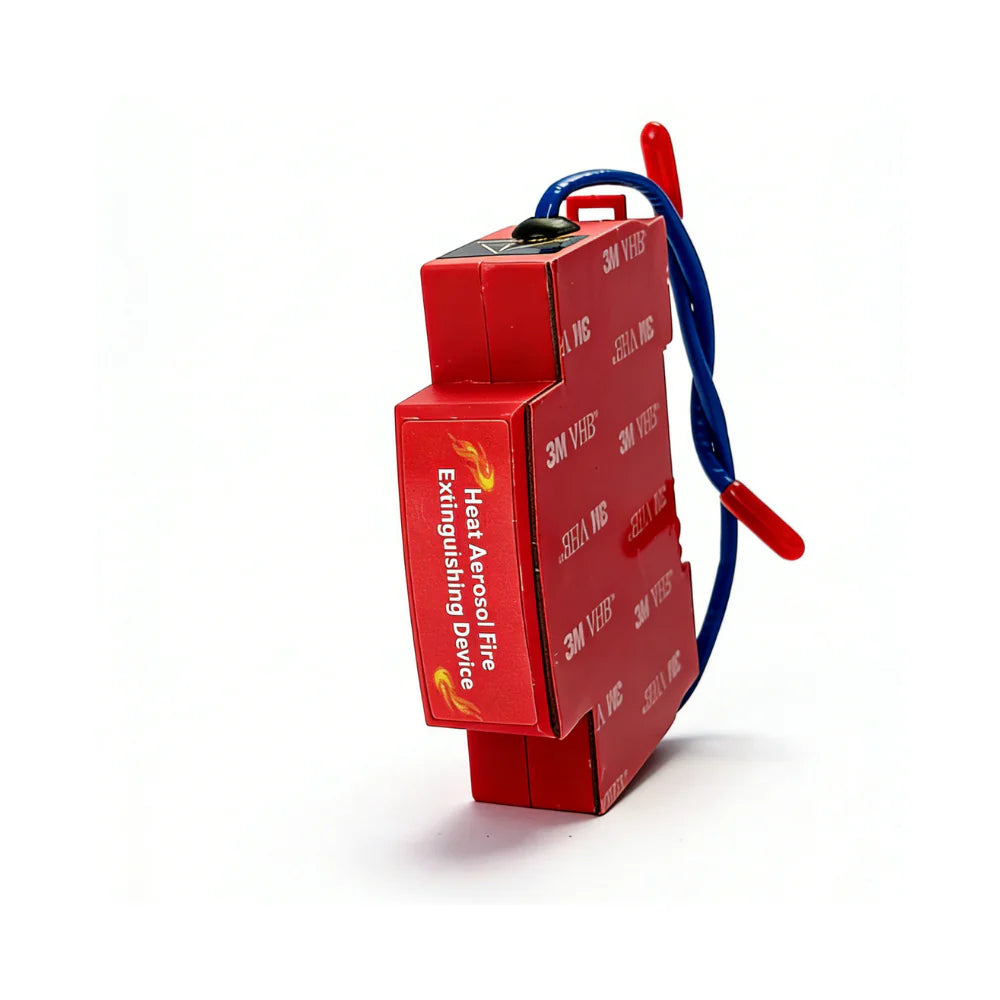

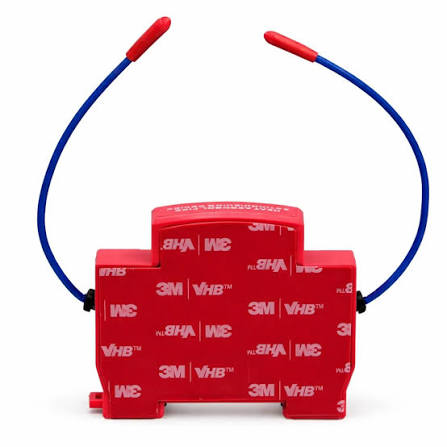

Easy Installation The device can be easily mounted using a 35mm DIN rail or 3M adhesive, ensuring a simple installation process without requiring significant modifications to existing systems.

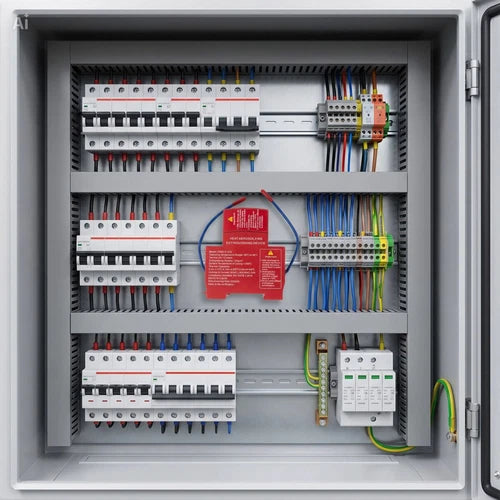

Seamless Integration The device is designed to blend seamlessly with existing electrical systems and circuit protection products, maintaining the aesthetics of the control panel while providing essential fire protection.

Perfect Applications

This device is ideal for a range of environments, particularly those with electrical systems and sensitive equipment:

Electrical Cabinets & Distribution Boards Protect electrical enclosures from fire hazards caused by overheating or electrical malfunctions. Essential for any building's electrical distribution infrastructure.

Control Panels & Industrial Systems Keep industrial control systems secure from fire damage in tight and hard-to-reach areas. Critical for manufacturing facilities and automation systems.

Solar Inverter Cabinets Safeguard your solar power system from thermal runaway and electrical fires. Increasingly important as solar installations grow in Pakistan.

Battery Storage Enclosures Protect battery backup systems and energy storage solutions that can generate excessive heat during charging cycles.

Server Rooms & Data Centers Safeguard valuable IT equipment and data centers, where fire suppression systems must be effective without risking damage to sensitive electronics.

Telecom & Network Cabinets Keep communication infrastructure safe from fire hazards in confined equipment spaces.

Small Enclosed Electrical Spaces Any confined area housing electrical or electronic equipment that may be prone to fire hazards can benefit from this reliable fire suppression system.

Technical Specifications

Why Choose This Fire Extinguishing Device?

Fast and Effective Fire Suppression The quick activation and discharge of fire-extinguishing aerosol ensure that fires are suppressed before they can cause significant damage to your valuable electrical equipment.

Non-Intrusive and Compact Its small size and simple installation make it an unobtrusive addition to electrical systems, providing high-performance fire protection without occupying valuable space or requiring extensive modifications.
